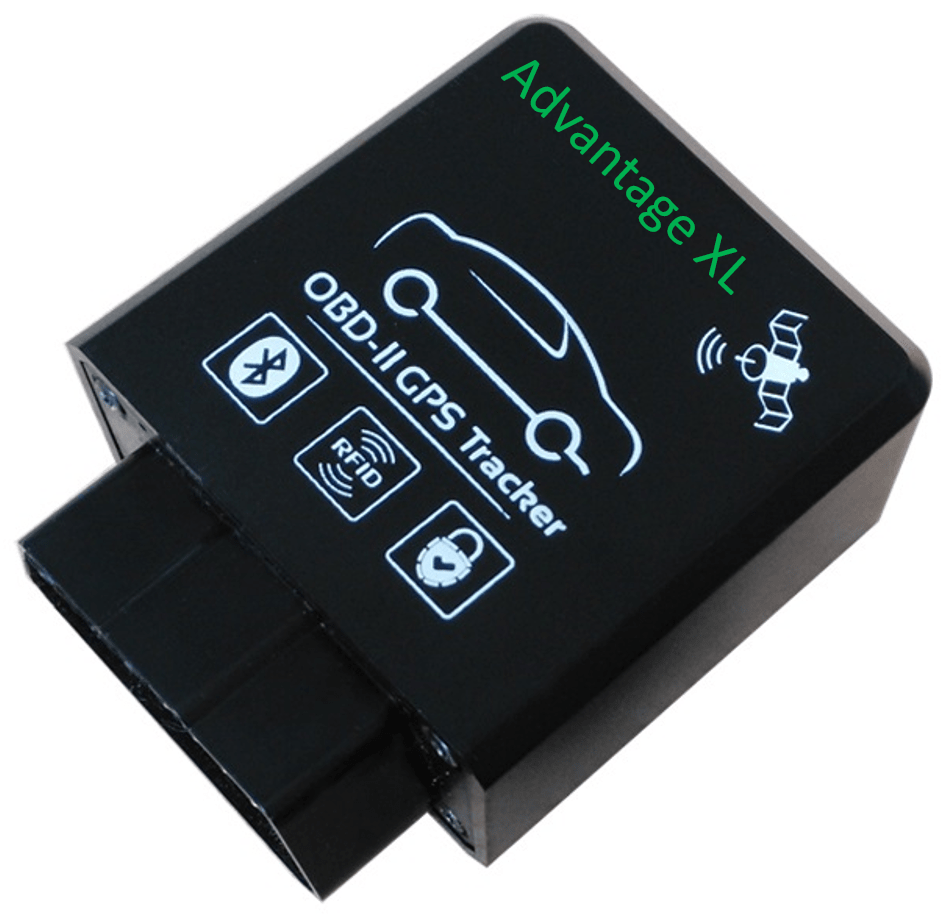

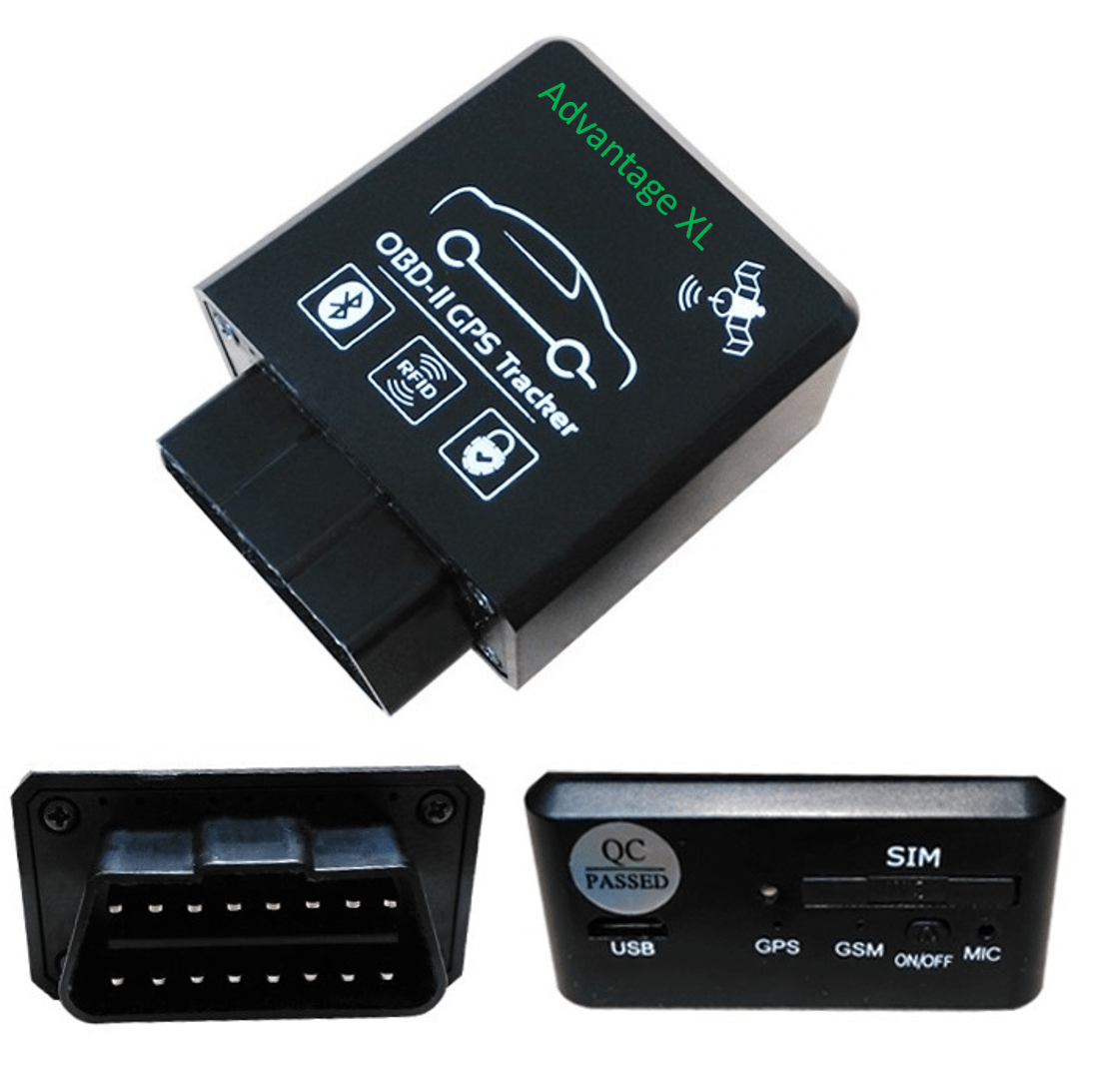

Advantage XL is a multifunctional plug & play design with RFID car alarm. The device will read data from vehicle ECU via CAN-BUS. It’s simple keyless alarm system powered by 2.4Ghz RFID technology for easy installation.

It supports protocol ISO9141-2, KWP2000_5BPS, KWP2000_FAST, CANBUS_11B_500K, CANBUS_29B_500K, CANBUS_11B_250K, CANBUS_29B_250K.

  • Long standby time
  • Single/multiple location tracking
  • Over-speed, low power, tremble and parking alarm
  • Geofence monitoring

Request A Demo
  • Long standby time (more than 3 months)
  • Single/multiple location tracking
  • Over-speed, Low power, Tremble, Parking Alarm
  • Geofence
  • SOS Alarm
  • Engine power cut off
  • Support SMS
  • Sleep mode
Dimension 122mm * 81mm * 30.8mm
Power Supply 5V-36V
Backup Battery 4500mAh/3.7V-4.2V
USB Charge 5V
Charging Time Aprox. 6 hrs
Standby Time More than 3 months
Humidity Upto 75% non-condensing
Position Accuracy 10-15 meters
GSM Frequency Quad-band (850/900/1800/1900 Mhz)
LED 3 LEDs indicator (GSM/GPS/Charge)
Button 2 Buttons SOS and A button
Interface 2 digital input (1 Positive, 1 negative), 2 digital output, 1 analog input
