The Bridge MX represents the latest technology in radar detection. This device comes in the form of a 5 inch smart mirror enabled with Bluetooth connectivity and dual camera HD/DVR view for long time video recording, this device is very useful as a built in back up radar detection camera.
It features an in-built high sensitive dual microphone, USB 2.0 high speed transmission interface, micro SD card capacity of 2-32 GB with a Bluetooth hands free device enabled. Its most amazing features are its blue colored mirror (anti glare), crisp night vision display, sensitive GPS precision with FM transmitter output and an interchangeable bracket. Plus its installation is very easy and stress free. This device is highly optimized to support all modern police warning radars and measurement systems, display of current speed, radar information and direction of travel and its multi-lingual easing accessibility and usage.
Request A Demo- Built‐in high sensitive dual microphone
- Adopt USB2.0 high speed transmission interface
- Bluetooth hands‐free. And the Bluetooth music
- 2G‐32G Micro‐SD HC cards

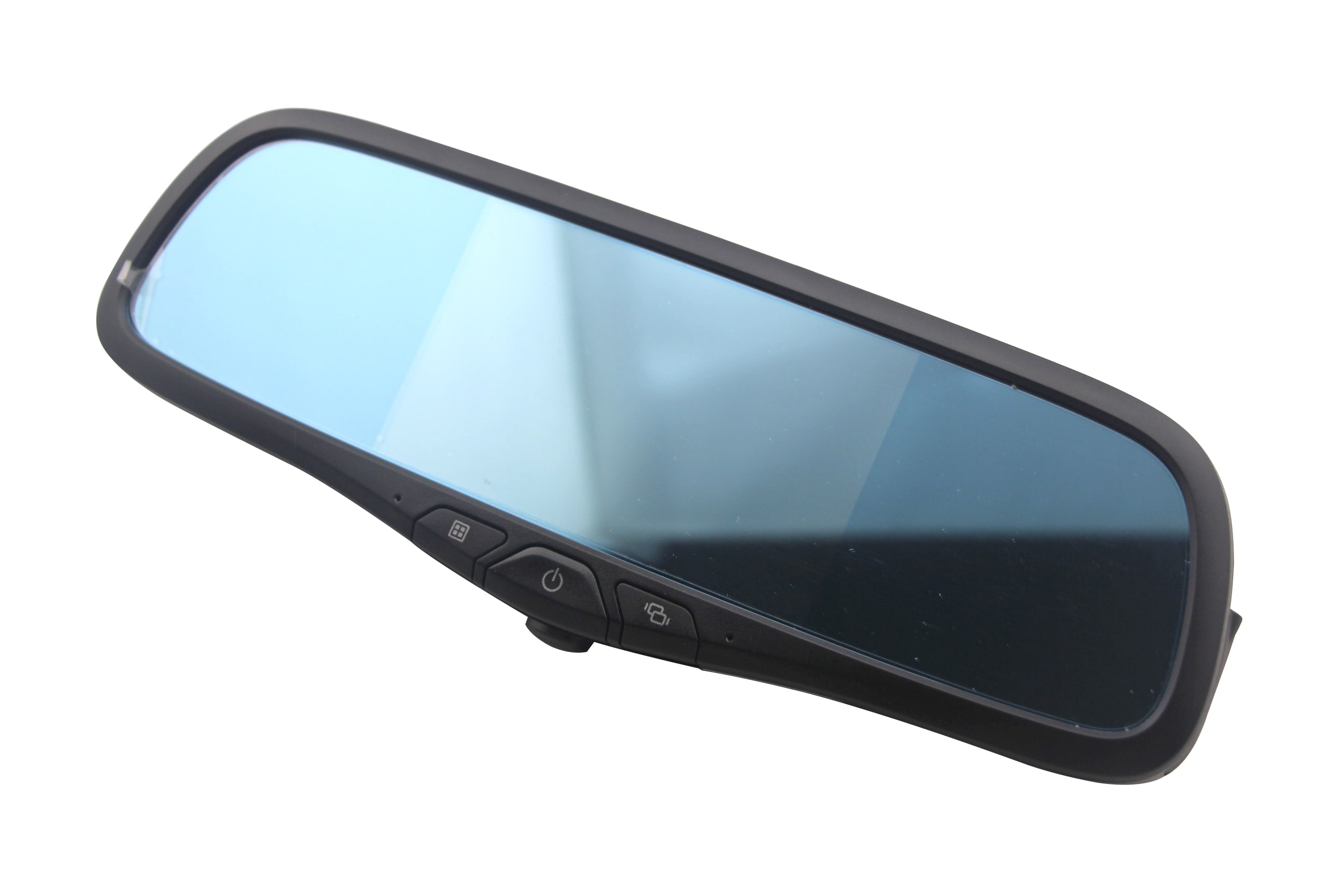

- Anti‐glare blue mirror
- Superior night vision
- Interchangeable bracket
- Non‐destructive installation
- HD music and video play(USB)
- Sensitive GPS precision(U‐blox 7N)
- Small display of Bluetooth telephone
- High‐performance Coretex A8 processor, Main frequency 512MB
- Configure high speed and high capacity memory DDR3 512MB

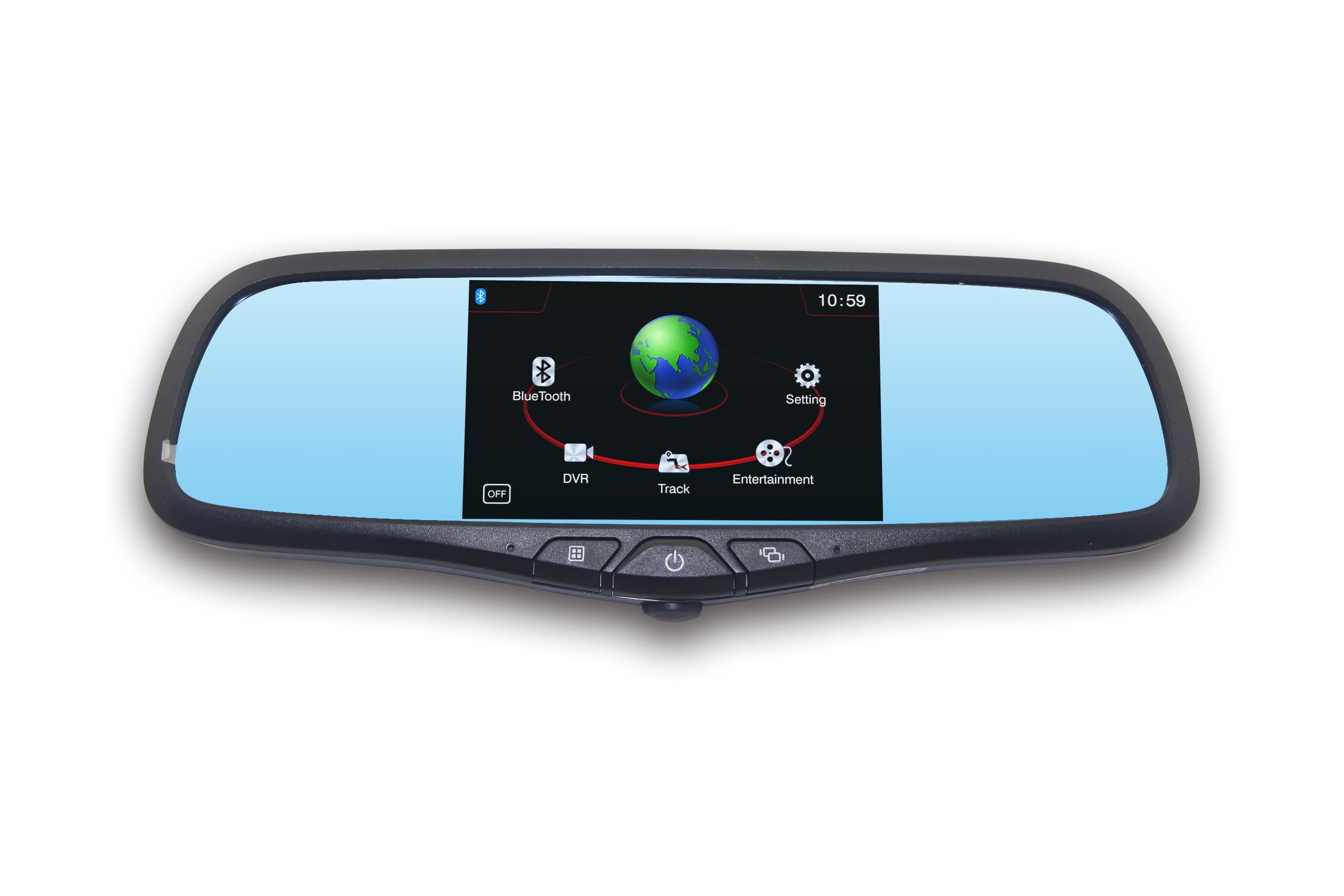

- 5‐inch resolution of 800x RGB x 480 high-definition digital LCD capacitive touch.
- One video input ( For Auto Reverse camera)
- FM transmitter output, built double speaker
- BMP, GIF, JPG, PNG and other image formats
- 480P/720P/ 1080P media file format decoding

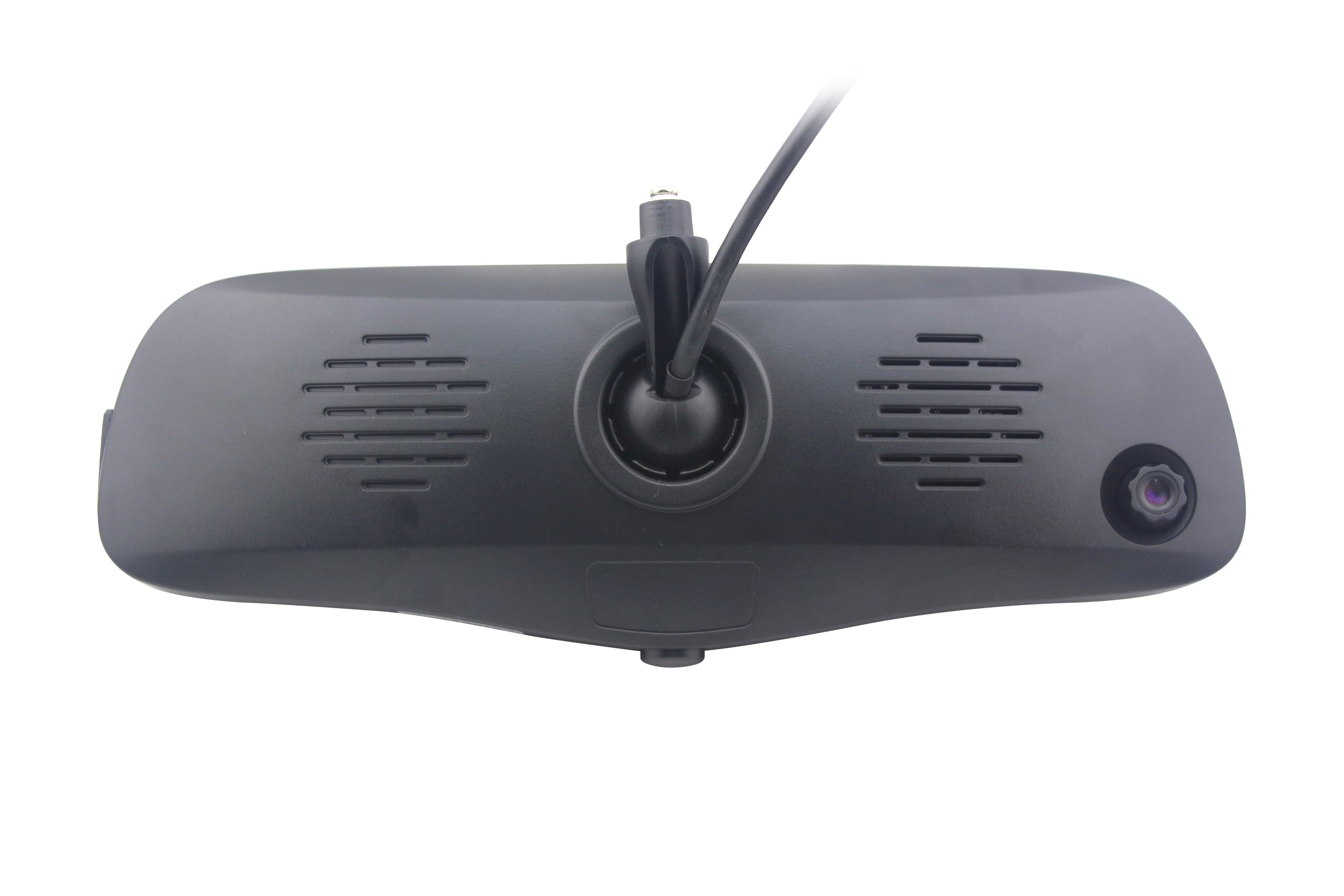

- Rotating shaft structure for bracket to shockproof and stability
- APE, MP3, WAV, WMA (including lossless format) and other audio formats
- AVI, FLV, MKV, MOV, MP4, MPG, RM / RMVB and other video formats
- Dual DVR (Front: HD720P, Back: 480P), real long time driving video of recording
- Multi‐language(English/Deutsch/French/Italian/Portuguese/Spanish/Chinese/Japanese/Russian/ Vietnamese)
- Support all modern police warning radars and measurement systems
- Support the display of the current direction of the driving current / speed / radar information
- Support adjust mode, the sensitivity of the detector radar speed mute, volume, etc
| GPS Channel | 24 |
| Positioning accuracy | Within 15M |
| Positioning time | Cold start < 60s, Warm start < 37s, Hot start < 19s |
| Refresh frequency | 1HZ |
| Map Card | SD/Micro-HC card |
| Speaker | 4Ω 2W |
| Center Frequency | 1575.42MHZ |
| Map configuration parameters | Communication Port: COM2 Baud Rate: 9600 |
| Antenna | inside |
| Audio format | AC3、ARM、APE、DTS、MP3、OGG、WAV、WMA etc |
| Video format | AVI、MKV、MOV、MP4、MPG、RM、RMVB、VOB、WMV etc |
| Picture format | BMP、GIF、JPG、PNG etc |
| TFT LCD Size | 5" 16:9, TFT |
| Capacitive Touch | LCD Touch Screen |
| Resolution | 800×RGB×480 HD |
| Brightness | 300cd/㎡ |
| Angle | Level > 60°，Vertically>50° |
| Record Format | Dual DVR, Front HD720P, Back 480P |
| Camera Rotate | Up-Down-Left-Right hand adjust |
| Memory | Support 512M-32G SD/Micro-HC |
| Picture Format | JPEG |
| Real video play format | TS and TXT |
| Radar Detection range | Frequency X, frequency Laser, frequency K, the frequency KA, KU frequency |
| Detection distance | At least 500m |
| Sensitivity | -70 dB |
| The broadcast method | Audible alarm + icon |
| Bluetooth Hands free | Built-in Speaker and Microphone |
| Parking System | PAL/NTSC Auto Switch |
| Power voltage | 12V |
| Max Electric current | ≤1.0A |
| Operation Temperature | -20℃ ~+60℃ |
| Store Temperature | -40℃ ~+80℃ |
