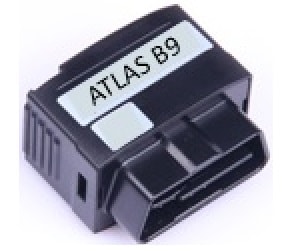

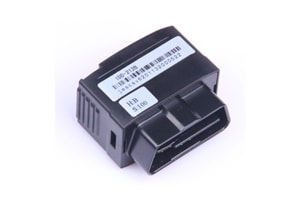

Atlas B9 is a Bluetooth 4.0 OBD scanner with built-in flash memory. It can read car ECU parameters such as Temperature, Speed, RPM, Diagnostic Trouble Code (DTC). It supports J1850-VPW, J1850-PWM, KWP2000, ISO9141, ISO15765 protocols.
Request A Demo- Bluetooth Support
- Built-in Flash Memory
- Car ECU Data
- Diagnostic Trouble Code (DTC)
| Operating Voltage | DC9V-16V |
| Working Temp | -30C ~ +70C |
| Storage Temp | -40C ~ +85C |
| Humidity | Upto 90% non-condensing |
| Protection | IP30 |
| BT Data Ratio | 2.1 Mbps |
| BT Frequency | 2.40 - 2.48GHz |
| BT Sensitivity | -85dBm@0.1% BER |
